November 5, 201411 yr comment_678076 Доброе время суток. Возникла ситуация. Принесли на ремонт блок В7.9.7 с "Калины" 16 клапанной. После заливки "рассолом". Люди его отмыли, но возникла ошибка по датчику температуры охлаждающей жидкости. И в правду 39 контакт ни с чем не звонится. Все видимые переходные отверстия пересмотрел - обрывов нет. Потеков и прочеих остатков тоже. Есть подозрение, что это переходное отверстие находится или под разъемом или под какой либо микросхемой. И вот чтобы это выяснить прошу помочь схемкой данного блока или хотябы подскажите каким путем, через какие элементы и на какую ногу проца приходит сигнал датчика. Заранее спасибо. P.S. Распиновку брал с сайта. Другого такого блока под рукой нет. Сравнить не с чем. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/ Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 5, 201411 yr comment_678082 Не хочу вас расстраивать но замена блока вам спасет нервы и время. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678082 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 5, 201411 yr comment_678084 Опередили,замена, там даже если и найдёшь перемечки, то не надолго,расол,своё дело сделал, Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678084 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 5, 201411 yr comment_678138 не экономь денег-клиента! экономь своё-время! блок под замену Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678138 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr Author comment_678201 ну а по сути вопроса... Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678201 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr comment_678204 замена блока Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678204 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr comment_678206 ну а по сути вопроса... А по сути: поставишь этот ЭБУ после ремонта и убьёшь клиента, или себя ... Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678206 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr Author comment_678210 А по сути: поставишь этот ЭБУ после ремонта и убьёшь клиента, или себя ... почему? Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678210 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr comment_678212 39-й пин соединяется с 40-й ногой процессора через резистор 10кОм. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678212 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr Author comment_678218 39-й пин соединяется с 40-й ногой процессора через резистор 10кОм. спасибо. а принципиальной схемы нет? Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678218 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr comment_678222 Схема только у Boschа. Там и без схемы все видно. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678222 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr Author comment_678223 Схема только у Boschа. надежда умирает последней))) А всетаки схемку хочется))))) Еще раз спасибо. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678223 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr comment_678228 клиенту новый блок, этот себе на эксперементы и (или) на запчасти., забирается за так или максимум за 500 рублей. Клиенту нужны гарантии , на утоныша ни каких гарантий трезвый мастер не даст. Хотя мне уже кажется, что ты сам и есть клиент. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678228 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

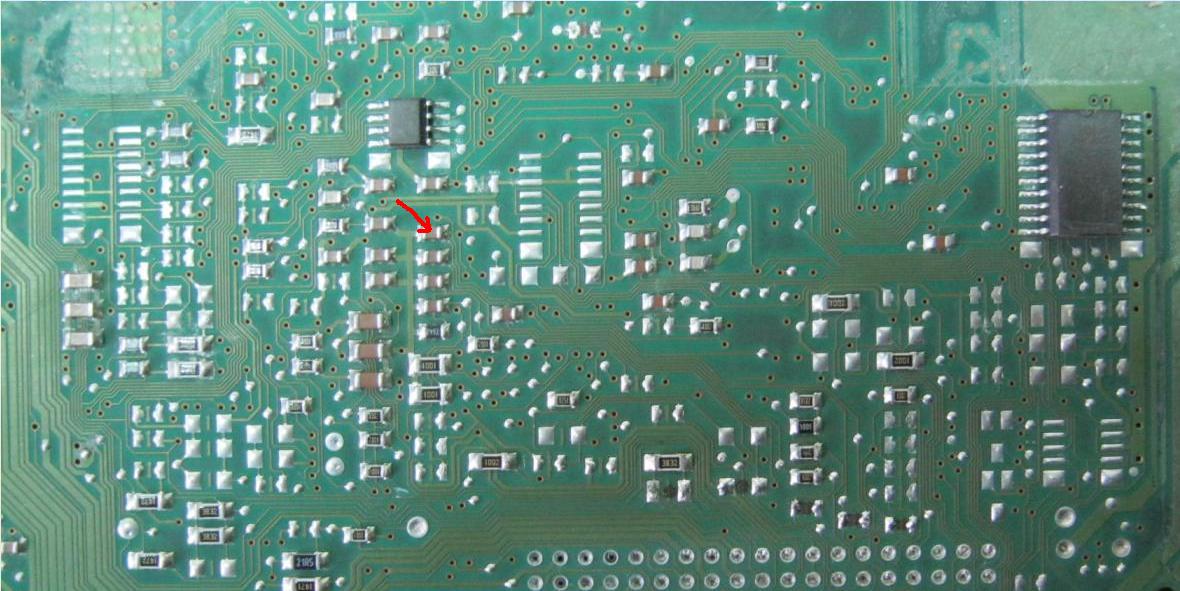

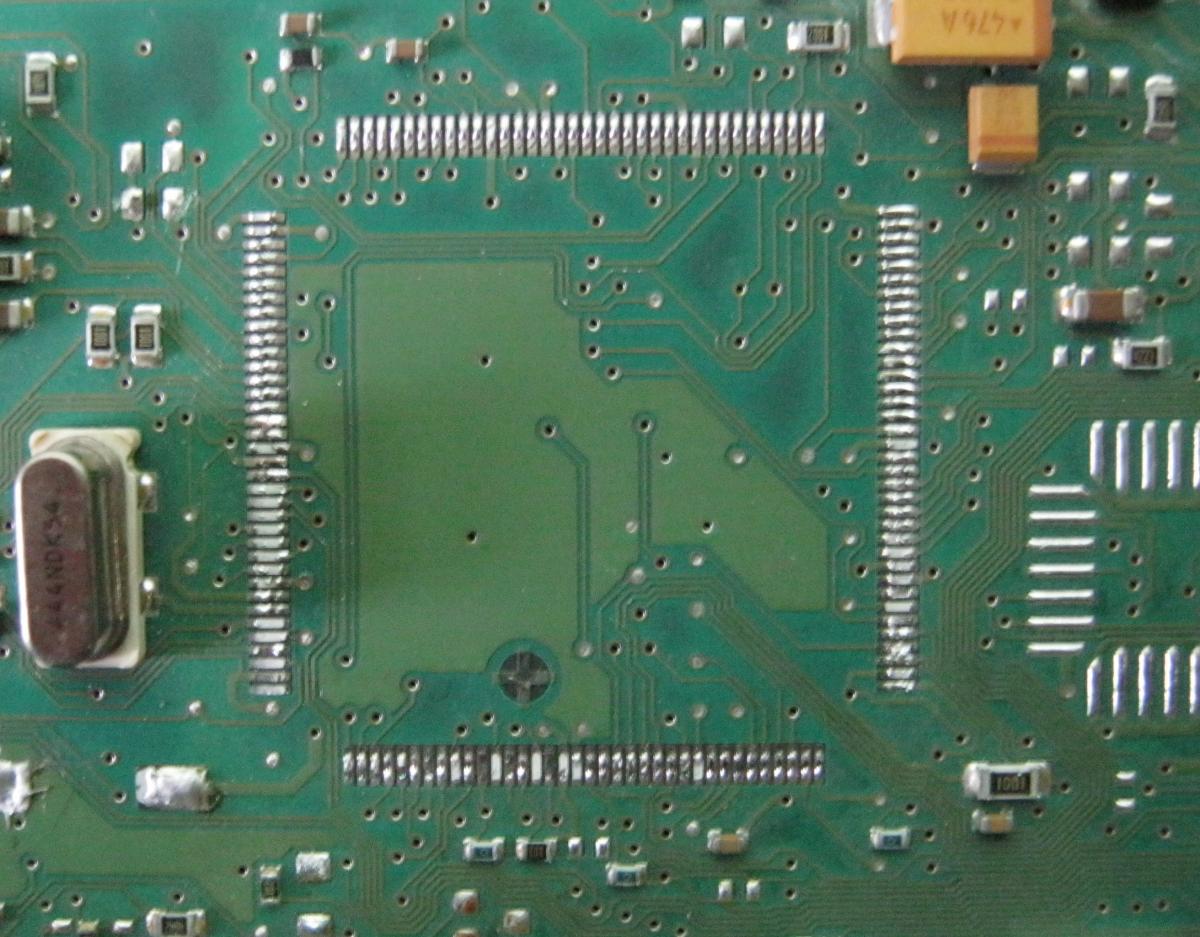

November 6, 201411 yr comment_678247 Под этим конденсатором переход. И что под процессором. Может пригодится. Edited November 6, 201411 yr by Alex64 Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678247 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 6, 201411 yr Author comment_678338 всем спасибо за помощь. пропаял дорожку и ошибка пропала. а на счет гарантии. передо мной поставили задачу с датчиком разобраться и в другие эпостаси не лезть. тема закрыта. Link to comment https://www.auto-bk.ru/forum/topic/55176-%D1%80%D0%B5%D0%BC%D0%BE%D0%BD%D1%82-%D1%8D%D0%B1%D1%83-bosch-797/#findComment-678338 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
