VAG Pinouts Bootpin Information

By o717ka, in ECU Pinouts, Bootpin Information, ECU Pictures, ECU Locations.

Recommended Posts

o717ka    454

o717ka
Posted (edited)

 AUDI ME7.1.1




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 Audi A4 A6 A8  EDC15VM




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 AUDI A6 2,7 EDC16 CP




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted

VW Magneti Marelli IAW 4BV KR




Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

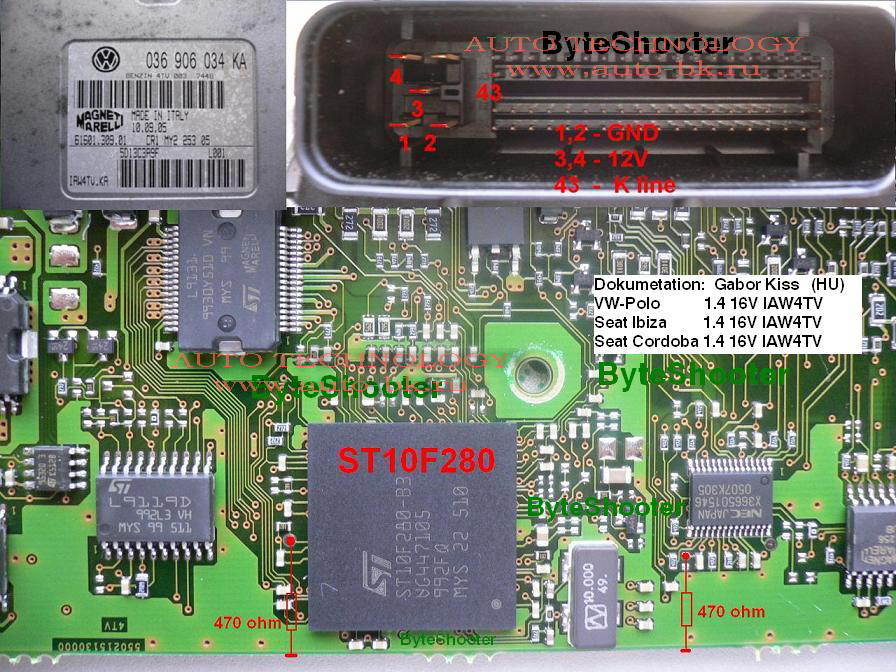

 VW Magneti Marelli IAW4TV




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 VW lt 2,8l edc15 c4




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

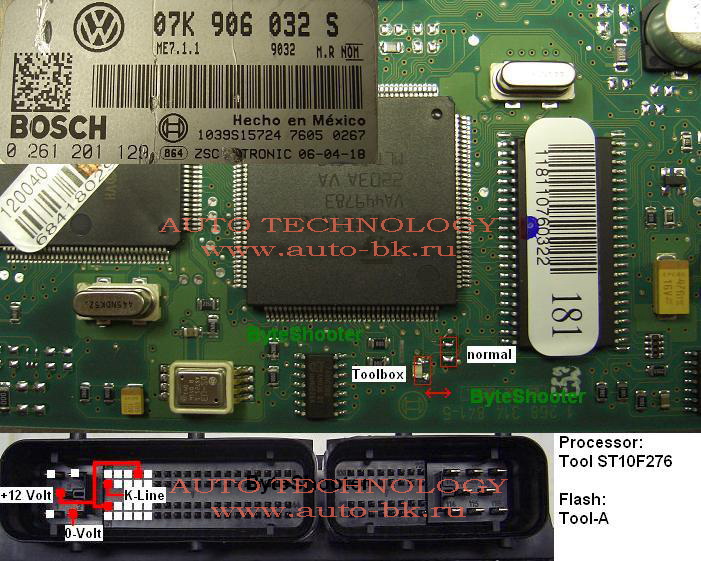

 VW ME7.1.1 0261-201-129




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

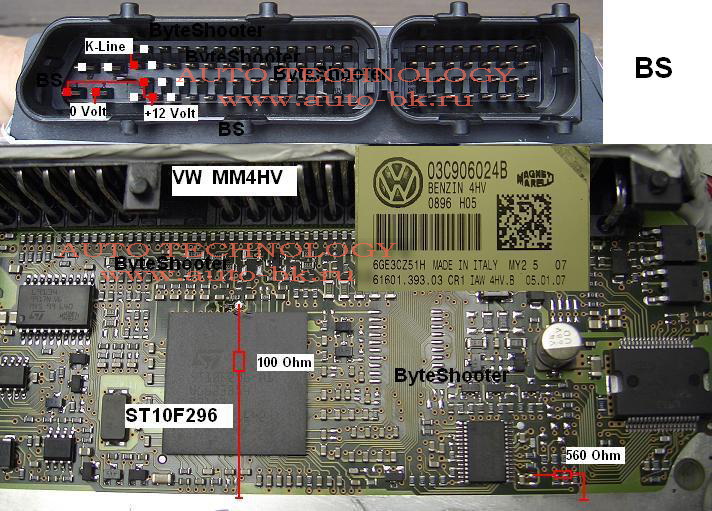

 VW Magneti Marelli 4HV




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 VW Siemens 5WP4 190 03




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 Golf4 R32 DSG Steuergerat




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

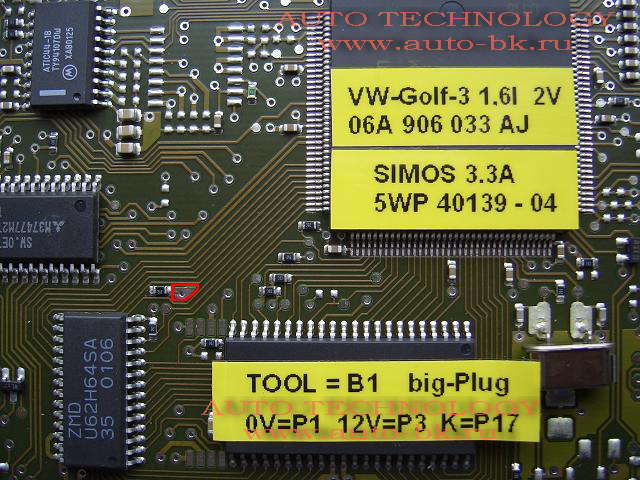

  Golf-3 1.6l  SIMOS 3.3A




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

  vag edc16 u31




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

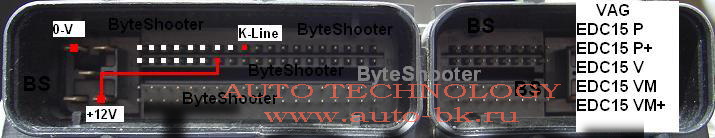

  VAG-EDC15-D, EDC15-D+, EDC15-V, EDC15-VM, EDC15-VM+




Edited by o717ka
  • Upvote 1

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

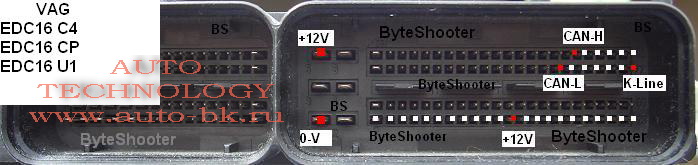

  VAG  EDC16 C4, EDC16 CP, EDC16 U1


Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

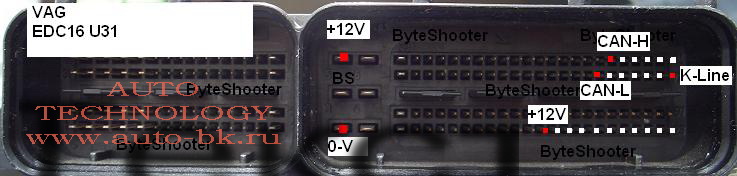

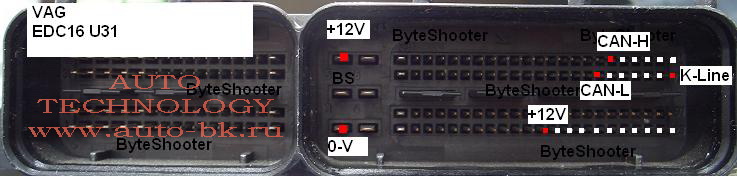

 VAG EDC16 U31




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

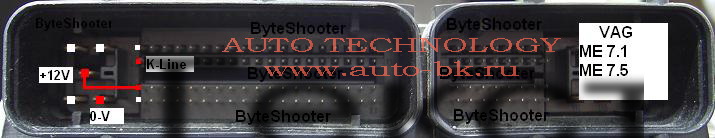

 VAG ME7.1 ME7.5




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 VAG MED7.1.1




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 VAG MED 9.1, MED 9.5.10




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

 EDC 15C4.1




Edited by o717ka

Share this post

Link to post
Share on other sites


o717ka    454

o717ka
Posted (edited)

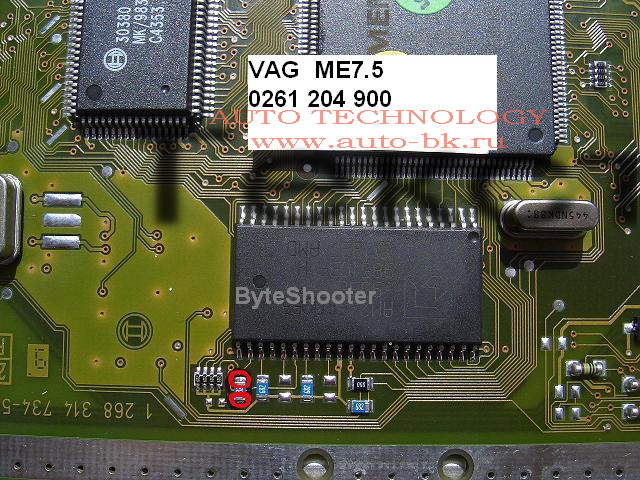

 ME7.5 0261204900






Edited by o717ka

Share this post

Link to post
Share on other sites
