March 28, 200818 yr comment_210 Требуется для сопряжения Компа и Авто! ________.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/ Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 28, 200818 yr Author comment_211 Для тех кто боится микросхем подойдёт вот эта схема всего на 2 транзисторах(критична к длине и качеству какбеля)! k_small3.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-211 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 28, 200818 yr Author comment_212 Есчё выкладываем!!! 2kl_____________232.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-212 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 28, 200818 yr Author comment_213 Хороший мануал по Адаптеру,в нём есть точки подлючения к Рус. Авто. K_Line.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-213 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 28, 200818 yr Author comment_214 Эту схему я мечтаю собрать,ни как не могу собраться!К-лайн адаптер ЮСБ!!! Если у кого есть печатка или подобная схема Юсб-выкладывайте,такая иницыатива будет одобренна! Кто соберёт пишите отзывы! K_L_USB_SCH.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-214 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 31, 200818 yr comment_219 усб адаптер. проверял сам. работает отлично. щас им пользуюсь. ___________.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-219 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 4, 200818 yr comment_238 еще схемка K_L_LINE.ZIP Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-238 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

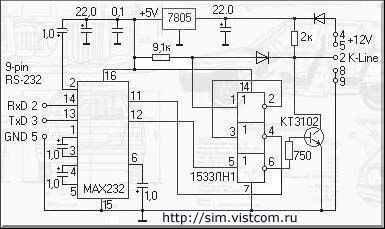

April 4, 200818 yr comment_244 еще Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-244 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 16, 200818 yr Author comment_368 усб адаптер. проверял сам. работает отлично. щас им пользуюсь. Собрал я сиё чудо !устойство определяется, Но винда присит дрова на устройсто ! Люди подскажите где их взять??? Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-368 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 16, 200818 yr comment_369 Собрал я сиё чудо !устойство определяется,Но винда присит дрова на устройсто ! Люди подскажите где их взять??? Свежак http://www.ftdichip.com/ Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-369 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 17, 200818 yr comment_372 Есчё выкладываем!!! Можно ли к етой схеме указать источник или описание с номиналами елементов? Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-372 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 17, 200818 yr Author comment_373 Можно ли к етой схеме указать источник или описание с номиналами елементов? Извини колега не помню откуда скачал эту схему! Но как я понял там нехватает номеналов кондёров для обвязки Макса-но она ведь стандартная тоесть все кондёры по 47мф! Держи есчё схемки на более доступных деталях! По крайне мере у нас Мс 33199-не купиш,говорят сняли с производства! ________.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-373 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
May 10, 200818 yr comment_550 Извини колега не помню откуда скачал эту схему!Но как я понял там нехватает номеналов кондёров для обвязки Макса-но она ведь стандартная тоесть все кондёры по 47мф! Держи есчё схемки на более доступных деталях! По крайне мере у нас Мс 33199-не купиш,говорят сняли с производства! Уже нашел для обвязки МАКСа используются конд по 1мкф. (смотри в оффмануале) Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-550 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
August 15, 200818 yr comment_879 простая на отрончиках pl2303- дата-кабель телефона Edited August 15, 200818 yr by dima_k Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-879 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
January 17, 200917 yr comment_5576 Вот моя схема . Edited January 17, 200917 yr by Urree Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-5576 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
February 1, 200917 yr comment_7042 простая на отрончиках pl2303- дата-кабель телефона Для этой схемы нужно править скорость обмена в реестре,иначе будет не корректно работать. Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-7042 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
February 1, 200917 yr comment_7043 Есчё выкладываем!!! Добавлю к схеме исправленную печатку под "утюг" k___l___line.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-7043 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
February 1, 200917 yr comment_7059 Для этой схемы нужно править скорость обмена в реестре,иначе будет не корректно работать. Юрий.. а не подскажете в какой ветке реестра править? а то существует у меня такая проблема... Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-7059 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
February 7, 200917 yr comment_7662 Юрий.. а не подскажете в какой ветке реестра править? а то существует у меня такая проблема... PL-2303_46_200_10472_10400 PL_2303_46_200_10472_10400.rar Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-7662 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
February 23, 200917 yr comment_9825 Всем здрасте! Серьёзный вопрос! Имею ЕЛМ 327, и захотел сделать адаптер ЮСБ, уже везут МС 33199д, а по ИСТ и ФТ232 ничего сказать не могут, предлагают МАХ 232, но говорят она програмируемая( я далёк от электроники).Вопрос - какую заказать вторую микросхему, и под какую реальную рабочую схему к-лайн адаптера? Печатку тоже разработают, но если у кого есть готовая шлите. alfa246@yandex.ru Заранее всем спасибо!!! Link to comment https://www.auto-bk.ru/forum/topic/138-%D1%81%D1%85%D0%B5%D0%BC%D1%8B-%D0%B0%D0%B4%D0%B0%D0%BF%D1%82%D0%B5%D1%80%D0%BE%D0%B2/#findComment-9825 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
