January 1, 201016 yr comment_61632 FORD Visteon DPC-806 Edited January 2, 201016 yr by o717ka Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/ Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
January 1, 201016 yr Author comment_61633 FORD ST SMAX ME9.0 Edited January 2, 201016 yr by o717ka Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-61633 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

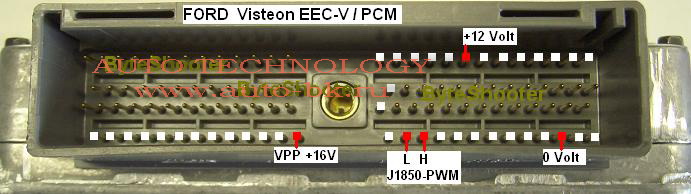

January 1, 201016 yr Author comment_61634 Ford Visteon EEC-V PCM Connector Edited January 2, 201016 yr by o717ka Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-61634 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
March 15, 201016 yr comment_75933 FORD Delphi 301 Edited March 15, 201016 yr by sasha Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-75933 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

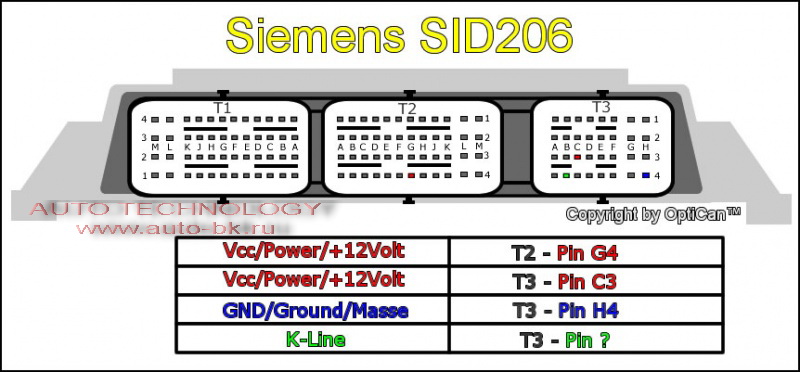

April 19, 201016 yr Author comment_83549 Siemens SID 206 Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-83549 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 25, 201016 yr Author comment_84647 Ford Visteon DCU101 Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-84647 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
June 4, 201214 yr Author comment_306738 VISTEON DCU102 FORD ST10F276 Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-306738 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

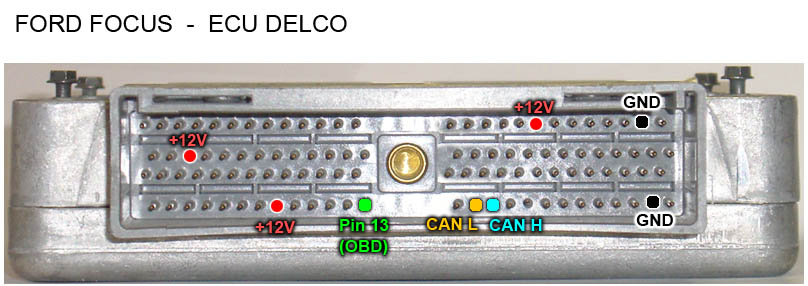

June 4, 201214 yr Author comment_306885 ECU DELCO VISTEON Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-306885 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

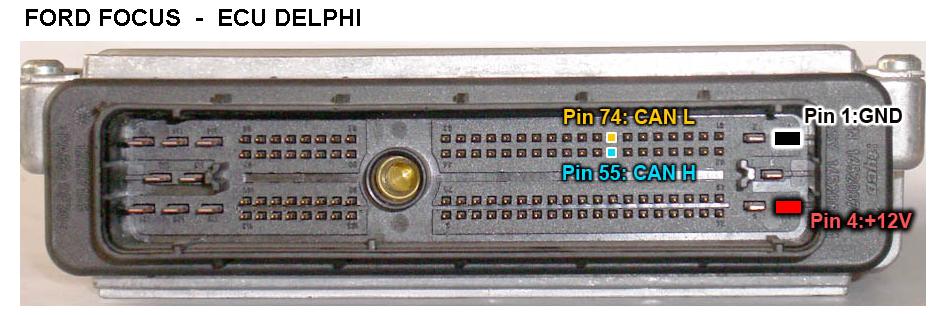

June 4, 201214 yr Author comment_306931 ECU DELPHI FORD Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-306931 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 22, 201313 yr comment_473930 Что есть по этому ЭБУ? Форд Мондео v2.0 Tdci 2002. Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-473930 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 23, 201610 yr comment_980031 Visteon esu131 ,у кого-то есть? Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-980031 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
April 3, 20179 yr comment_1042540 Всем привет. Ищу распиновку на форд эскейп 3.0 бензин акпп год 2004-2006 примерно PCM150F 3 разьёма квадратных. Кому не жалко поделитесь)) заранее благодарен всем откликнувшимся. Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1042540 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
July 30, 20179 yr comment_1068875 Добрый вечер , ищу распиновку Ford Focus 3 Powershift TCM DPS6 BSL TriCore 1738. Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1068875 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
July 30, 20179 yr comment_1068889 Если мануал не врёт то получается так))) Осталось найти пин bsl) Хотя проц не BGA , надеюсь разберусь) Ford Focus 3 Powershift TCM DPS6_PINOUT.txt Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1068889 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
November 1, 20187 yr comment_1155494 Здравствуйте! Нужна рапиновка блока Visteon PCM150F (5L8A-12A650-AAD). Если нужно заплатить, заплачу. Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1155494 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 23, 20224 yr comment_1274102 22.09.2013 в 12:44, gret-box сказал: Что есть по этому ЭБУ? Форд Мондео v2.0 Tdci 2002. Подскажите есть распиновка по данному блоку для работы на столе? 3s71-12a650-ZB DPC-812 mondeo v2.0 Tdci 2002 На столе хочу подключиться. Заранее благодарен Заранее благодарен. Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1274102 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post

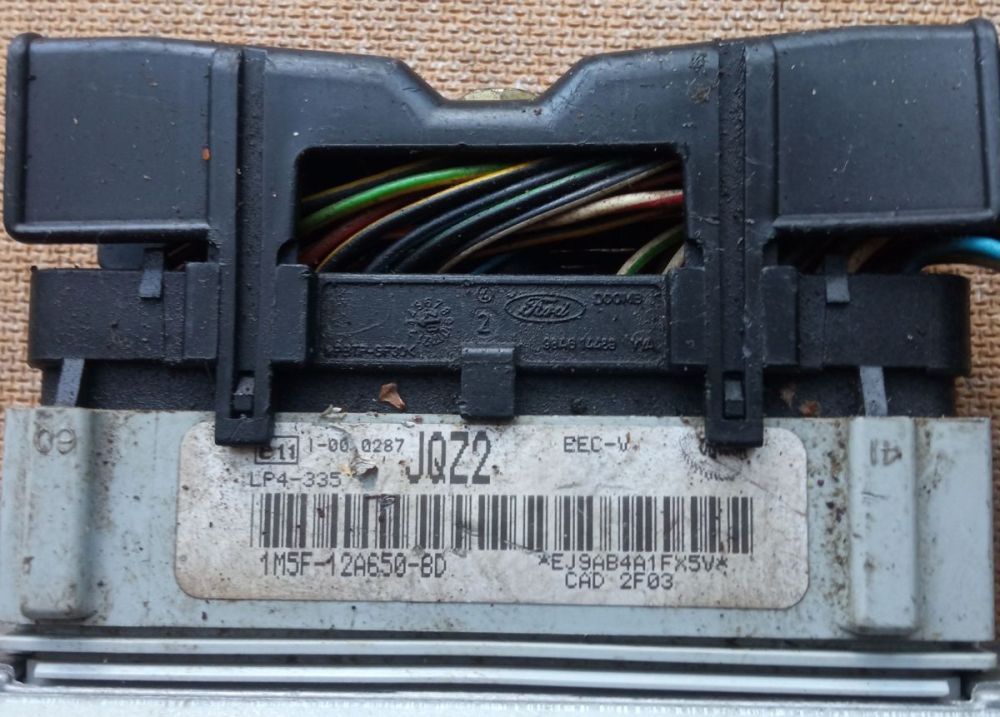

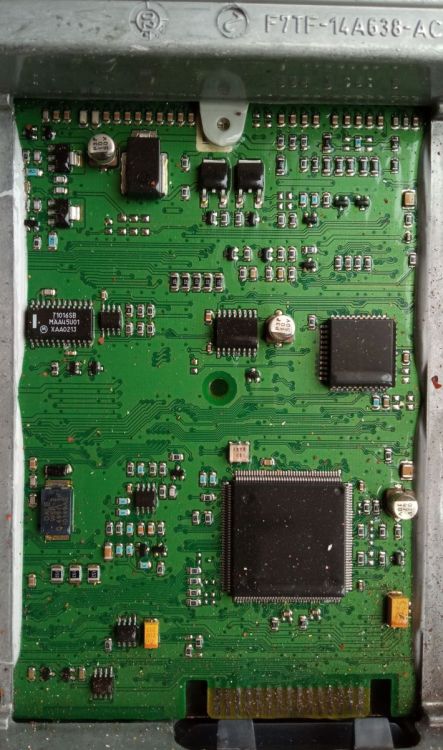

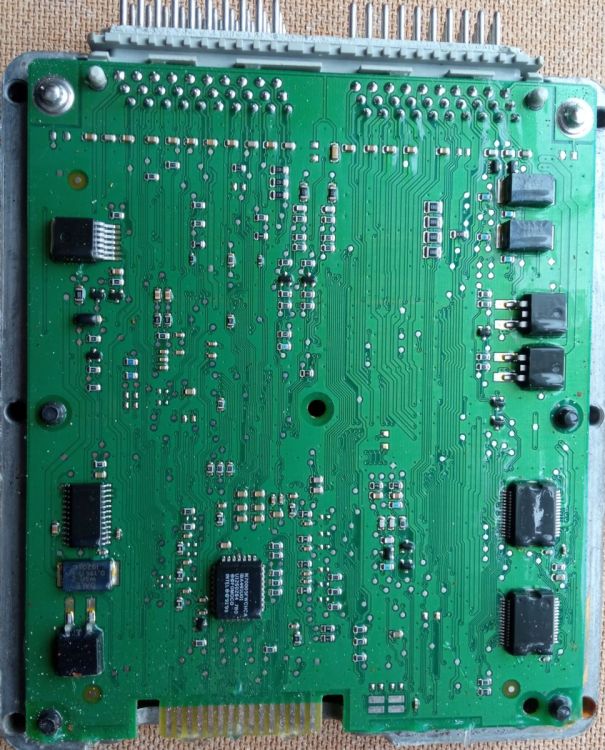

September 10Sep 10 comment_1312025 FF1 EEC-V бензин 1.8 разъём 60-ногНужна реальная схема подключения на столе Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1312025 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 10Sep 10 comment_1312026 для репрога? Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1312026 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 10Sep 10 comment_1312027 В автодате была Edited September 10Sep 10 by Slavik k Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1312027 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
September 12Sep 12 comment_1312040 FF1 EEC-V бензин 1.8 разъём 60-ног Link to comment https://www.auto-bk.ru/forum/topic/7099-ford-pinouts-bootpin-information/#findComment-1312040 Share on other sites Share on Facebook Share on X Share on Pinterest More sharing options... Share this post
