Подключение приборок на столе, внутрисхемка

Recommended Posts

Все по внутрисхемке ложим тут ребята.

Фото, контрольки.

_________________2008_____________.rar

  • Upvote 2

Share this post


Link to post
Share on other sites

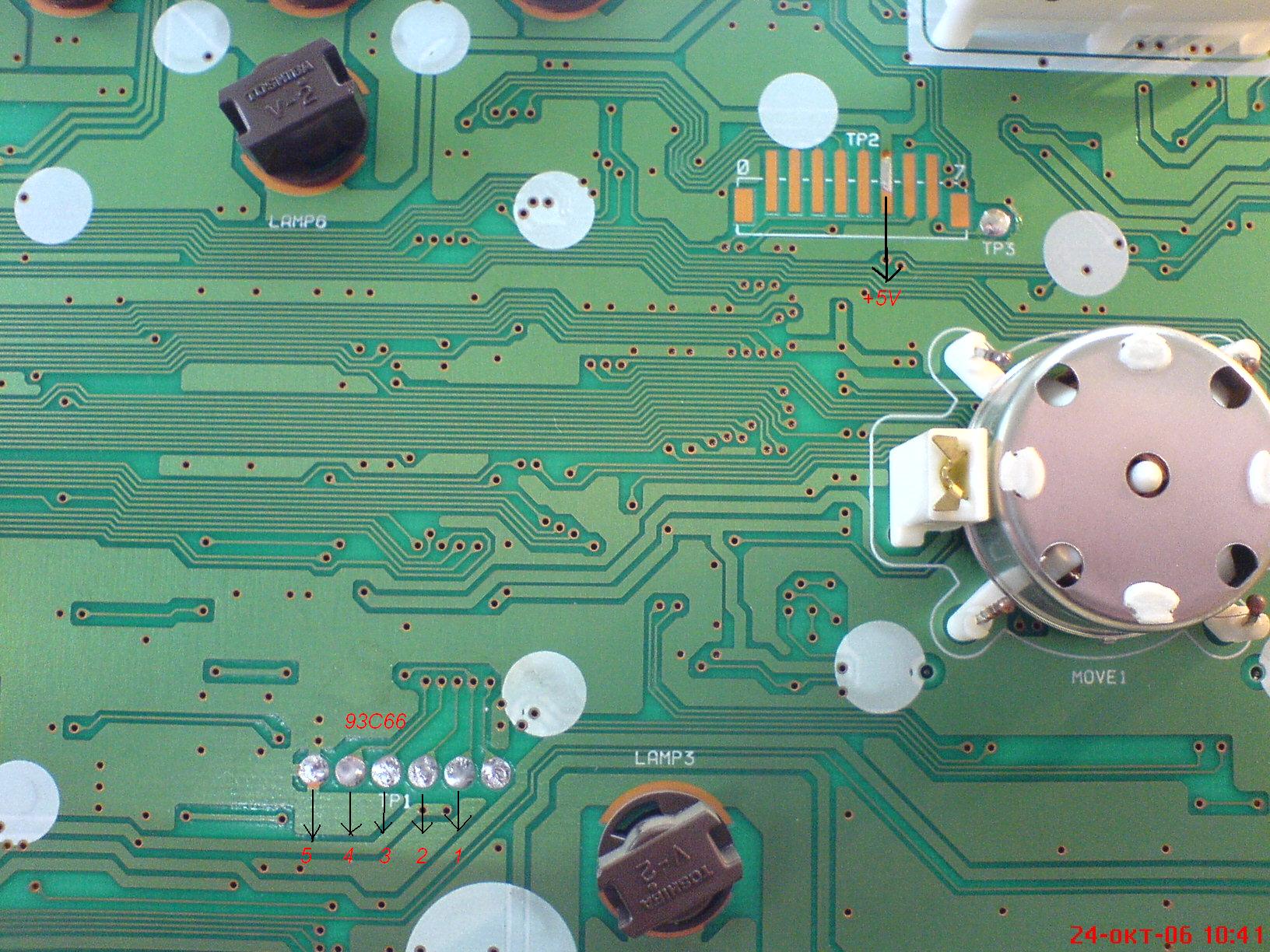

Nissan Almera 2005г


  • Upvote 1

Share this post


Link to post
Share on other sites

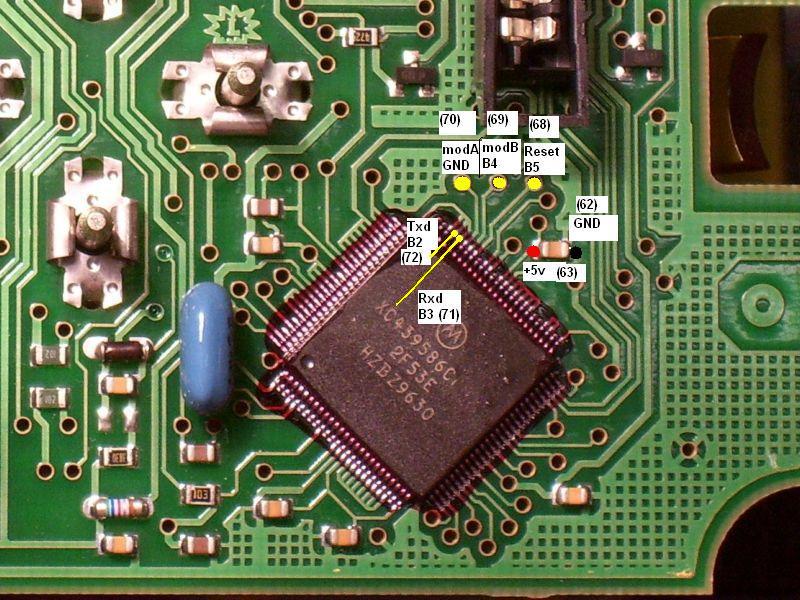

Nissan Murano

TP1- 5

TP2 - 4

TP3 - 3

TP4 - 2

TP5 - 1

TP6 - 6,8

Share this post


Link to post
Share on other sites




Taxo Kienzle 1324 . Номера Pin соответсвуют номерам ножек памяти 24С04,которая стоит в этом тахографе.Корректирую внутрисхемно с помощью Orange.


Share this post


Link to post
Share on other sites








MITSUBISHI MONTERO


Edited by Slavik k

Share this post


Link to post
Share on other sites







вот от меня renault scenic 1998 jeager


Share this post


Link to post
Share on other sites

MB_Sprinter_VDO.rar Edited by aleksandr_17
