o717ka 462 Posted February 5, 2011 Autoscanner Opel 1065 1 1 Share this post Link to post Share on other sites

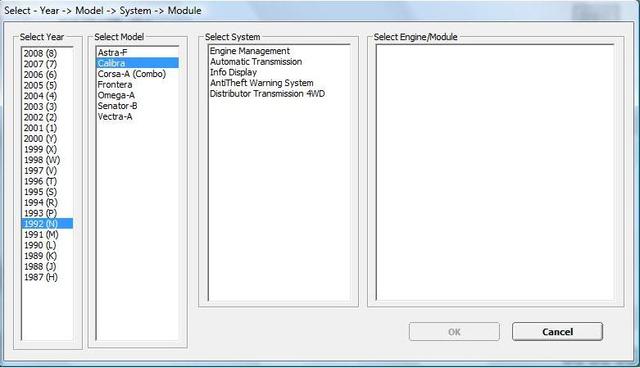

o717ka 462 Posted February 7, 2011 OPEL Scanner v1.0.1.71 пароль: sdjdbhkhg Русский присутствует скачать New version of software AutoscannerOpel (1.0.1.71). Corrected: - updated the ECU selection list - fixed R-N parameter on AT13/20 KWP Added: - HeadLampLevelling system to OAG - ODO correction on OAG after MY2000 - ECU ID on ABS8, Meriva - ECU ID on SAB6b - ECU ID on OCC BCM - ECU ID on Instrument OVB - ECU ID on ME7.6.1 - ECU ID on Multec H, Z16YNG - ECU ID on MultiJet - actuator tests on EDC15C7 - actuator tests on PSG16 - EGR parameters on Simtec71 - Control ECU on Instrument OOB GM OPEL / VAUXHALL SCANNER The AutoScanner Opel program is designed for OPEL cars diagnostics. The program supports majority of electronic control units (ECU), installed on Opel cars in 1987-2008 years. Using this interface you can fully maintain and diagnose vehicules OPEL vehicules. Advanced version features: Main features - provides diagnostics + immo1 key registering/erasing using valid Security Code + eeprom/eprom/ram reading from selected modules + odometer correction for some Opel Instruments (Vectra B up to MY99 and Astra G with VDO instrument in the current version) Supported cars: Antara (2007-), Agila (1998-2006) Ascona (1987-1989) Astra-F (1992-2002) Astra-G (1998-2006) Astra-H (2004-) Calibra (1990-1997) Corsa-A/Combo (1987-1993) Corsa (Vita)-B (1993-2000) Corsa (Vita)-C (2001-2006) Corsa-D (2007-) Frontera-A (1992-1998) Frontera-B (1999-2005) Kadett-E (1987-1991) Meriva (2003-2006) Omega-A (1987-1994) Omega-B (1994-2003) Senator-B (1987-1993) Sintra (1997-2000) Speedster/VX220 (2001-2006) Tigra A (1995-2000) Tigra B (2005-) Vectra-A (1989-1995) Vectra-B (1996-2001) Vectra-C/Signum (2002-) Zafira A (1999-2005) Zafira B (2006-) Supported modules are: Engine Control Unit; Automatic Transmission Control; ABS - Anti-Lock Brake System ESP - Electronic Stability Program AirBags; Immobilizer; Distributor Transmission 4WD; Traction Control; Body Control System ATWS - Anti-Theft Warning System Central Door Locking System Multi/Color/Triple Info Displays Instrument; Power Steering; Audio System; Electronic Climate Control; Sliding Roof; Electronic Seat Memory; Add-On Heater; Headlamp Leveling Device, and more... The AutoscannerOpel supports following features: Reading Identification info from ECU. Depending on the ECU, the ID can contain VIN, hardware number, software number, manufacturing date, etc. Reading/Erasing Trouble Codes. Provides information about trouble codes, their description, status and conditions, when the code registered in ECU’s memory. Live data display. In this mode the live data value is displayed in two ways – digital and graphical. For many parameters the information on “ideal” values for the given parameter is provided. Advanced Graphic Mode for Live Data Display. This mode allows watching simultaneously up to 4 live data parameter charts with recoding feature. Actuator Control. is capable to control actuators (fuel pumps, injectors, ignition coils, fans, telltales, etc) on the most of the Opel ECUs. At the same time the actual values can be observed. Reading firmware on selected ECU. Odometer correction on some models - Vectra B all, Astra G VDO all, Zafira A VDO all. Key registering/erasing on Immo1 and Immo2 (valid login required) Some coding functions, Airbag deployment record reset on Astra H / Vectra C / Corsa D, SAS adjustment, etc. Advantages of the program, comparing to other similar scanners:the best capabilities on Opel cars diagnostics among non-official diagnostic devices; simple, user-friendly and powerful interface; information on trouble codes and parameters allows to conduct car diagnostic in more efficient way; updates released every 2 months and include new features and bug fixes. only scanner available on the market that enables to scan with success cars older then 97 System requirements: Windows 2000/XP/VISTA, available USB or COM-port. Includes: USB or serial COM OPEL SCANNER Interface (inside obd2) ALDL 10pin ADAPTER OBD2 cable software v1.0.1.70 advanced 1 Share this post Link to post Share on other sites
YUG 20 Posted February 7, 2011 С каким адаптером работает??? Спасибо. Share this post Link to post Share on other sites
гараж 6 Posted February 7, 2011 Вот еще-бы прошивочку под 1.71 прогу. Share this post Link to post Share on other sites
o717ka 462 Posted February 7, 2011 пробуй с шнуром от 1065, должен работать Share this post Link to post Share on other sites
vlad195 82 Posted February 7, 2011 прога работает только со своей прошивой. номеру проги соответствует только своя прошива. другие шнурки блокируются. так что осторожней. Autoscanner Opel 1065 прошива от 1014 A92. прога будет блокироватся по дате . нужен откат. Share this post Link to post Share on other sites
o717ka 462 Posted February 7, 2011 OPEL Scanner v1.0.1.71 кто опробует отпишитесь, должна работать Share this post Link to post Share on other sites
lbotos 1 Posted February 7, 2011 Большое спасибо,будем пробовать. Share this post Link to post Share on other sites
dima_minsk 3 Posted February 8, 2011 Не пробуйте! Просто помрёт и 65 не останется! А 1014 очень ерундовая там много чего нет , даже АБС на Астре 98г не видит Share this post Link to post Share on other sites
rov 0 Posted February 9, 2011 Не пробуйте! Просто помрёт и 65 не останется! А 1014 очень ерундовая там много чего нет , даже АБС на Астре 98г не видит от одной попытки не помрёт,а выдаст прредупреждение,что возможен кирдык Share this post Link to post Share on other sites
fakk6 27 Posted February 10, 2011 Я покупал шнурок и эта прога была на диске. Так что работаю с ней уже давно, а версией прошивки и не заморачивался. Share this post Link to post Share on other sites
uncle_sem 12 Posted February 10, 2011 Я покупал шнурок и эта прога была на диске. Так что работаю с ней уже давно, а версией прошивки и не заморачивался. это говорит о том, что версия прошивки в твоем шнурке и версия проги на диске друг дружке соответствуют. в остальных случаях - шнурку придет кирдык. Share this post Link to post Share on other sites
vares 0 Posted February 10, 2011 Вообще-то это версия не 71ая,а 70ая переделанная для определённых серийников,в конкретном случае это А265. С прошивой а ля А92 работать не будет даже с ид А92 из этой серии. Share this post Link to post Share on other sites
fanka 0 Posted March 1, 2011 а мне прошивку можно OPEL Scanner v1.0.1.71 ? Share this post Link to post Share on other sites
olegus 3 Posted March 27, 2011 Кто успешно собрал интерфейс, подскажите какую конфигурацию при записи 2313 надо выставить? Share this post Link to post Share on other sites
willi76 0 Posted March 27, 2011 Кто успешно собрал интерфейс, подскажите какую конфигурацию при записи 2313 надо выставить? Share this post Link to post Share on other sites
dima_minsk 3 Posted March 28, 2011 Вот но только на апельсин но по аналогии выставить можно и на понике вид настройки на Orange.bmp Share this post Link to post Share on other sites
fakk6 27 Posted April 1, 2011 Кто нибудь пробовал с ее помощью менять прошивку, а то галета не хочет читать иденты с блока Simtek 56 на омеге? Share this post Link to post Share on other sites
ivan_pop 0 Posted April 17, 2011 (edited) Мне нужна рабочая программа для ver.1065 или прошивка на 2313 для ver.10171. Если кто-нибудь может помочь я был бы признателен. Скачал порога от первом посте но выбирая ЕКУ дает ошибка. У меня есть самодельный кабель с прошивкой под 1065 которой работает с 1014. Edited April 17, 2011 by ivan_pop Share this post Link to post Share on other sites
aflex 2 Posted April 17, 2011 Системное время переведи на 2007г. Share this post Link to post Share on other sites
